Tech Tip: Preventing Printhead Failure – Jigs

Adam TourvilleDcs Tips, Uncategorized
UG-14-0012_Rev.2_Preventing Print Head Failures_Using, Designing_Jigs_070122
Click Here to Download PDF Version

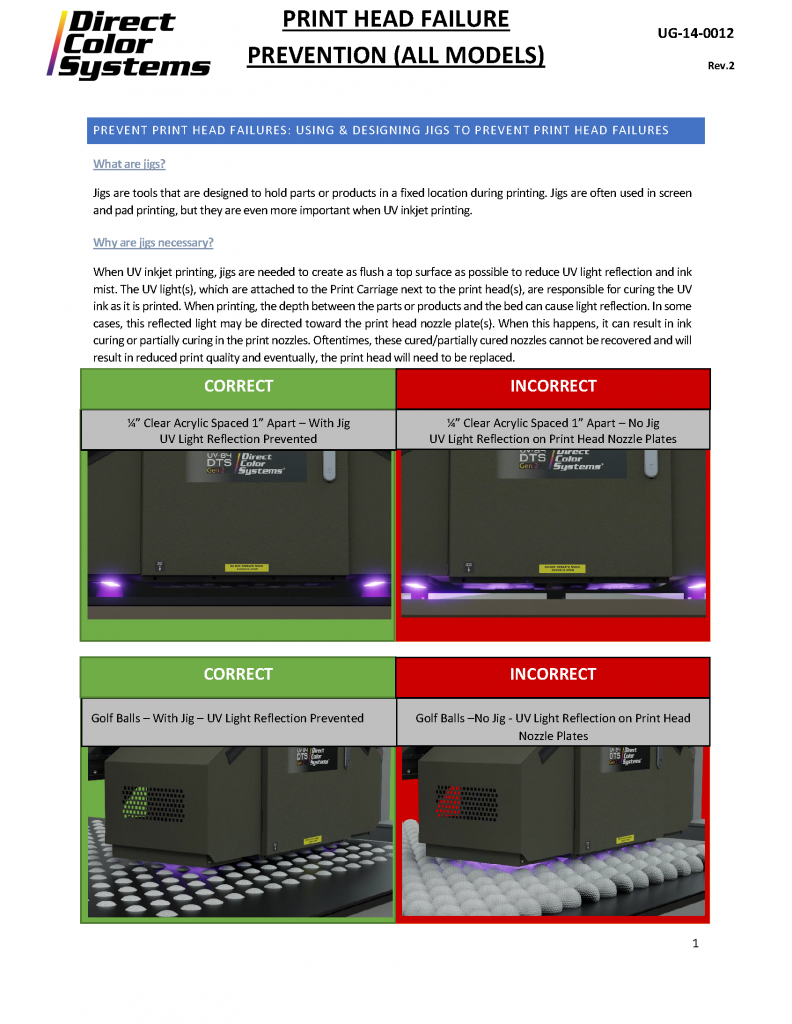

Image showing correct Jig Set Up

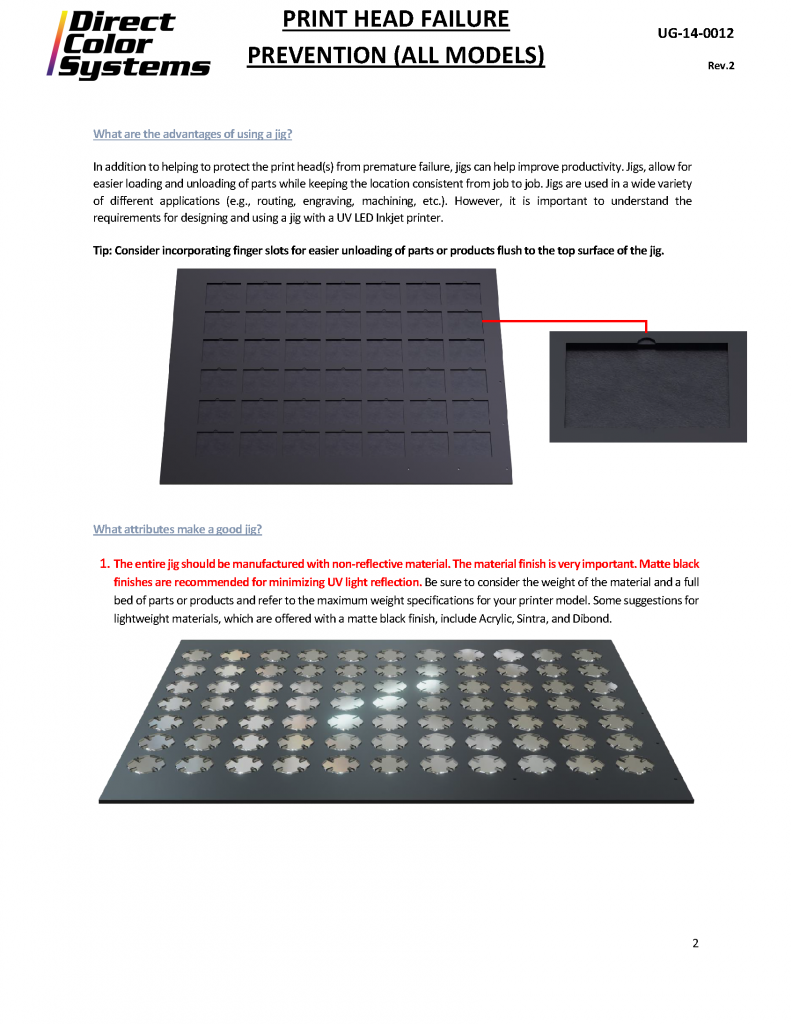

Image of printer finger slots for easier product unload

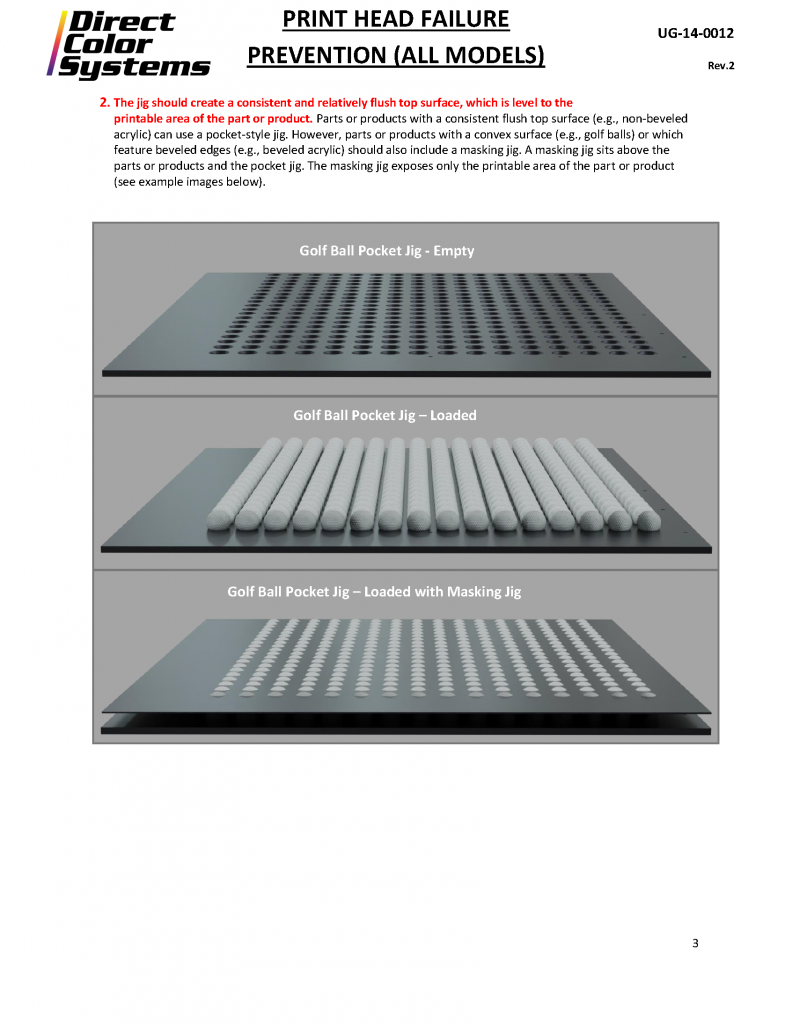

Images of golf ball pocket jig

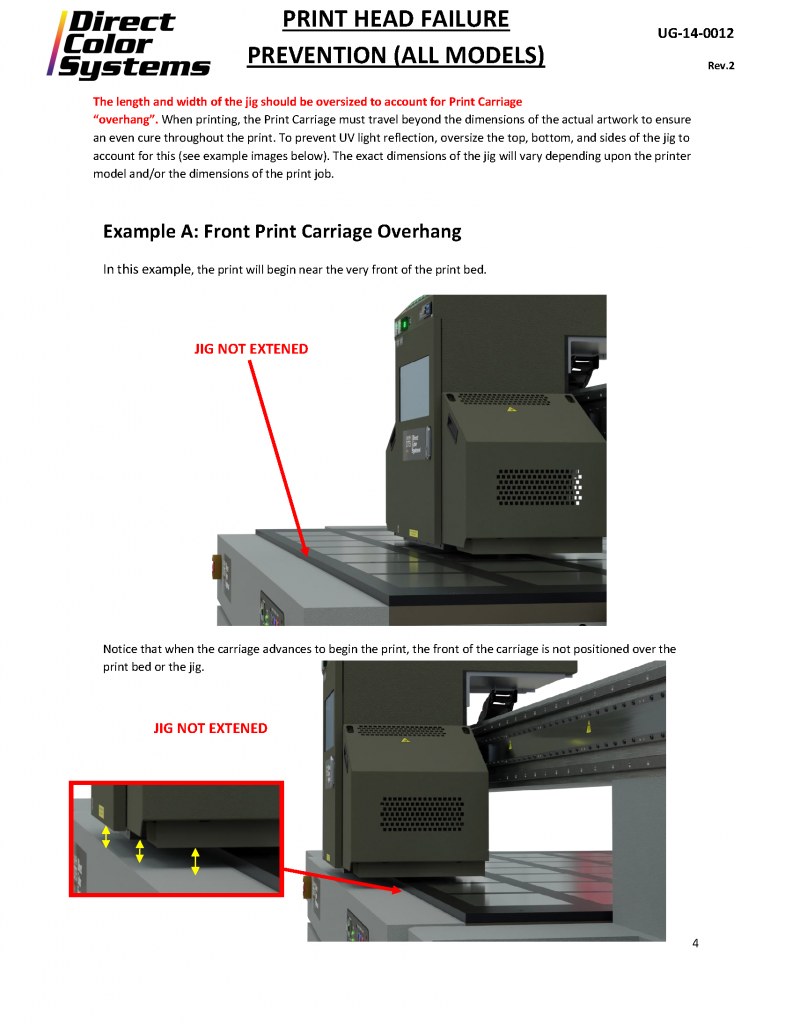

Picture of front print carriage overhange

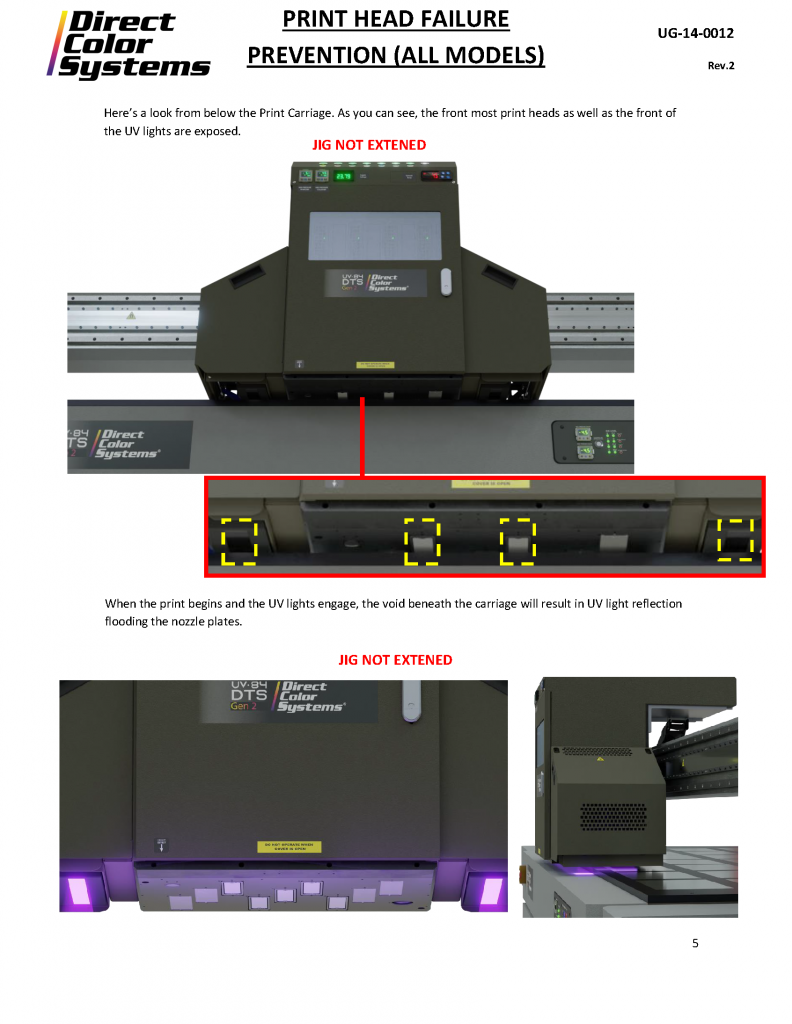

Image of Jig extension below the cartridge
Image showing proper jig extension

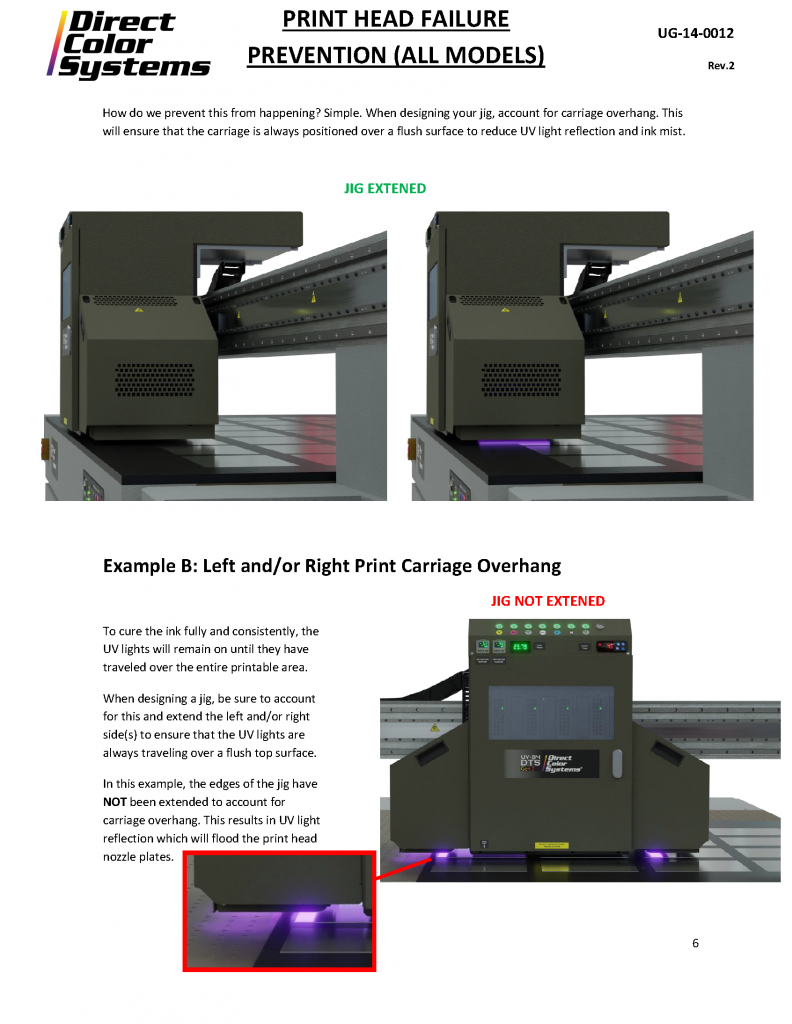

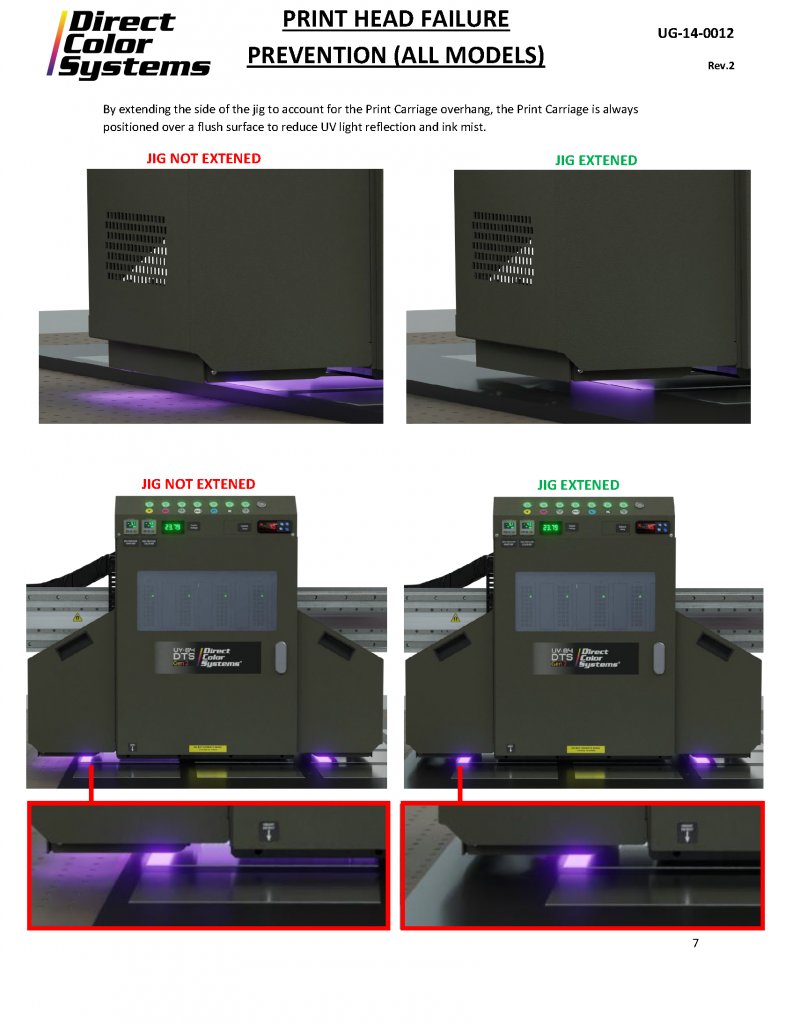

Images of of jig extension and not extended on lit up printer

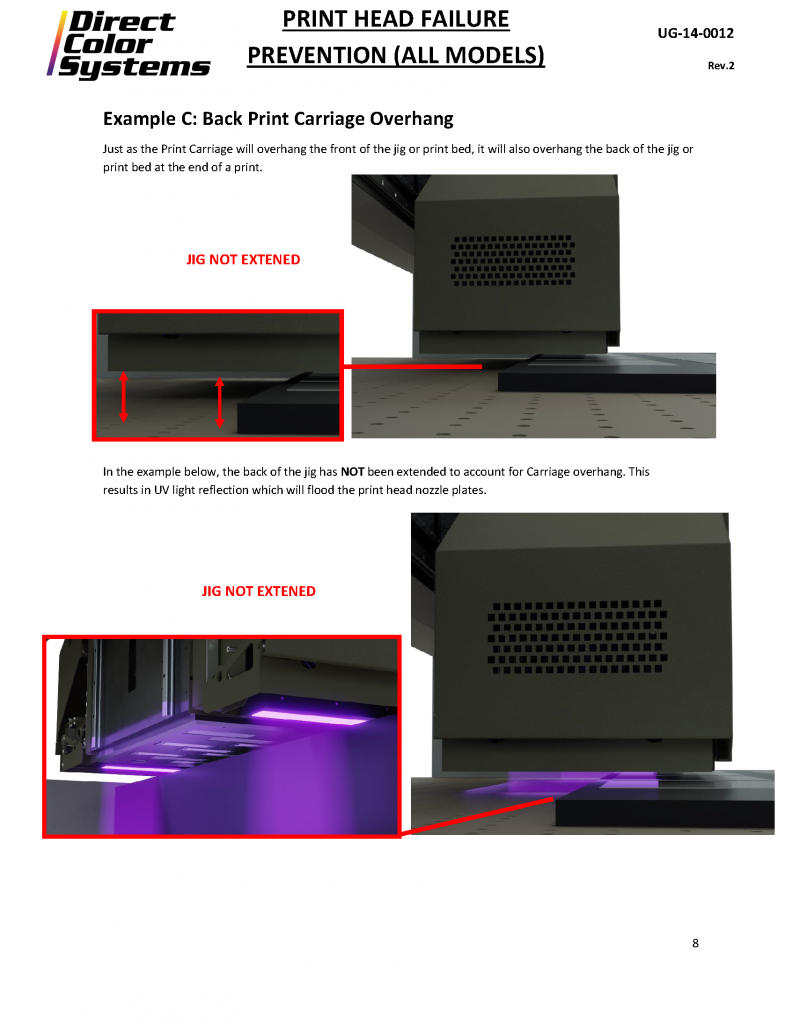

Back of print carriage overhang. Jig not extended

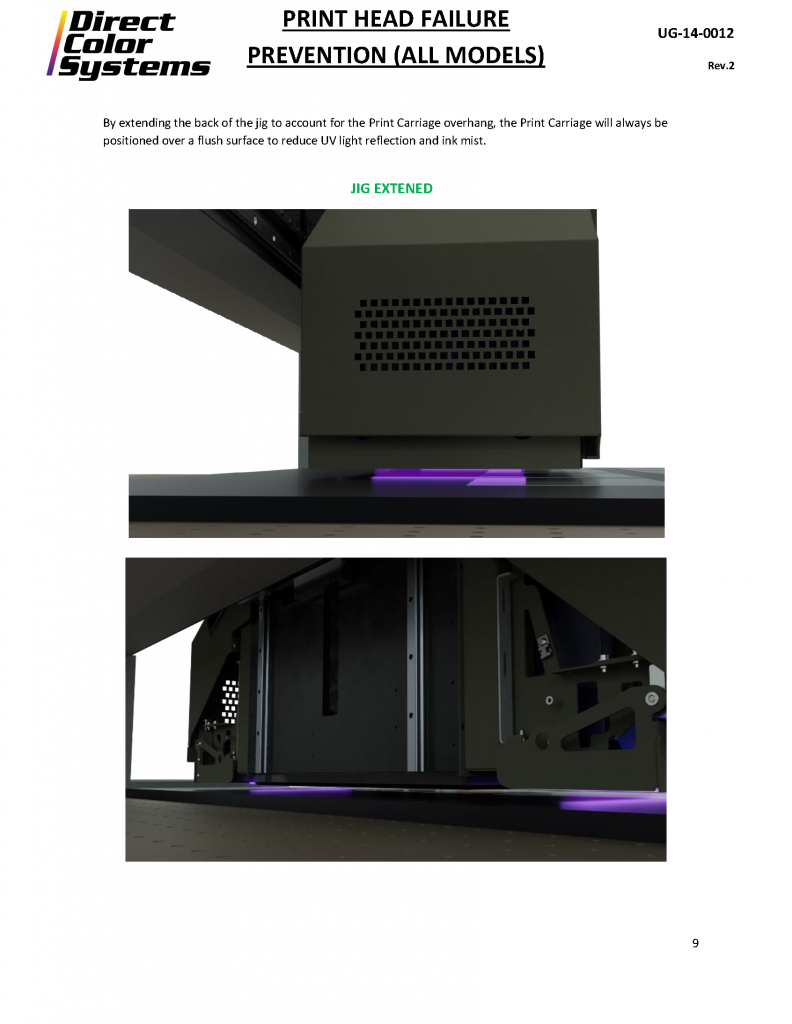

Two images of jig extended
Adam Tourville
