The 7200z UV LED printer was on display during

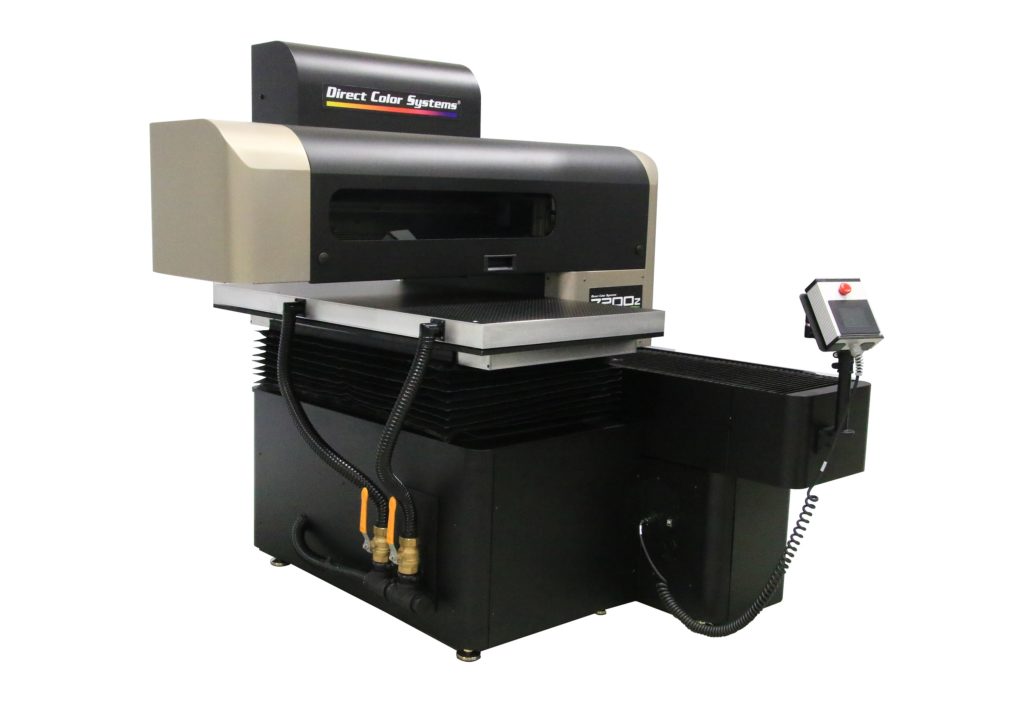

The 7200z: A True Production Center
With print speeds up to 29.7 m2/hr // 320 ft2/hr and a printable area of 600mm x 1,200mm // 23.8”1 x 48”, the 7200z is a TRUE Production Center and features optional accessories and modules like:
- EasyCyl 7200 – Cylindrical printing
- Patented ADA-Compliant/Braille Signage printing
Download the spec sheet below or contact us today via the form at the bottom of the page for more information
BEST IN CLASS AUTOMATION & THROUGHPUT
- Vacuum table option available
- Automated URL design, eCommerce, & download to RIP option
- Two individually controlled, air-cooled, UV LED lamps and 10 ink channels (C, M, Y, K, CI, CI, Wh, Wh, Wh, Wh) combine to enhance print speed
- Mobile touch screen pendants allow users to operate printer from multiple points
THE MOST VERSATILE PRINTER AVAILABLE
- TEXTUR3D™ 3-dimensional prints for a unique look and feel, plus standard flat prints
- Patented ADA-compliant/Braille signage option2
- Cylindrical & conical3 object printing made easy with the EasyCyl 7200 attachment
- Models vary with fully adjustable heights to accommodate substrates from 0 to 15cm // 0 to 6" (7200z15) and 0 to 29cm // 0 to 11.5" (7200z30)
- Print on wood, metals, ceramic tiles, plastics, glass, industrial parts, promotional products and so much more!4
- The included Color Byte RIP 10 software integrates seamlessly with industry-standard design programs (Photoshop, Illustrator, Color Byte Front End, CorelDRAW)
THE BEST IN UV PRINTER TECHNOLOGY
- Industry leading Y-axis absolute positioning accuracy and repeatability of ±0.038mm// ±0.0015"
- Precision Dot Control™ provides industry leading print quality
- White Ink Circulation System - Programmable and automatic circulation of the entire white ink tank and lines
- Bulk Ink System™ - This system allows for 100% utilization of available ink, unlike single-use cartridges
124.00” can be achieved under certain circumstances
2Not available of F4 Editions
3Limitations apply with conical printing
4All substrates should be tested for image receptivity, adhesion, and durability, with final acceptance and suitability determined by the customer
